Eco-friendly retardant flame retardant for PP/PE (V0)
Commercial Name: FR for PP/PE
Product No. : CS FR PP 210
Benefits:
● High flame retardant efficiency, dosage: 22~30%, less influence to the materials.
● Low density of the finished products, helpful for reducing the weight of the products.
● Higher processing temperature.
● No-corrosion to equipments.
● Can add Talc or fiber glass when needed.
Product Description
CS FR PP 210 is a compounded halogen-free intumescent flame retardant containing macromolecular phosphorus-nitrogen structure. It fully complies with EU ROHS environmental protection directives and relevant domestic policies and regulations on halogen-free, low-smoke and green environmental protection of flame retardant materials.
It is applied to polypropylene (PP) with 23~30% and can achieve 1.6mm V0, talc and fiber glass can also add in the system. Compared with Br-Sb flame retardant, FR PP 210 has extremely cost effectiveness, and nice to the equipments.
Specifications
|
Items |
Units |
Spec. |
|
Appearance |
- |

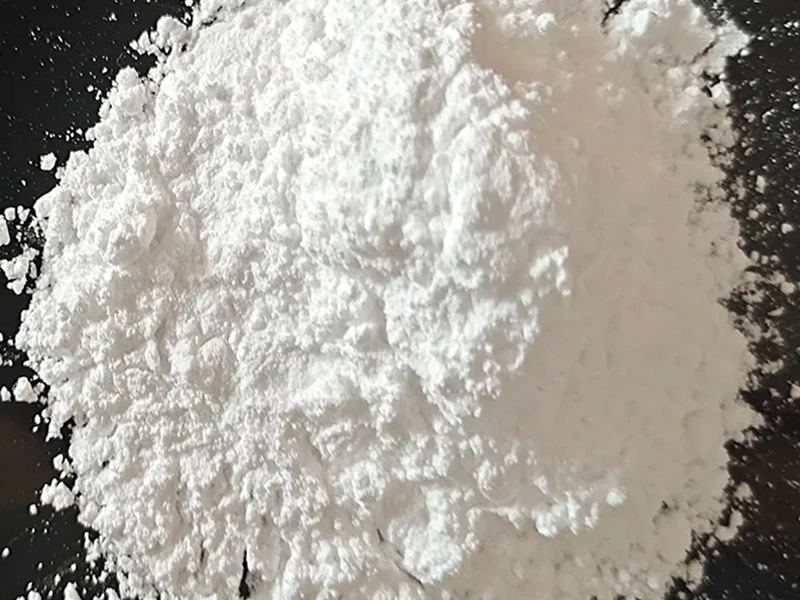

White powder |
|
P |
(%) w/w |
24~27% |
|
Whiteness |
≥90 |
|
|
Water-solubility |
g/100mL, 25 °C |
<0.5 |
|
Weight loss |
(1%) |
>260°C |
|
D50 |
(µm) |
≤15 |
Suggested Dosage
|
Items |
Units |
Spec. |
|
UL94 (3.2 mm) |
UL94 V-0 (1.6mm) |
UL94 V-0 (0.8mm) |
|
22~25% |
24~27% |
27~32% |
|
Note |
The dosage is different according to different procedures or different PP types. |
|
Application Case
|
Material Name |
Formulation 1 |
Formulation 2 |
Formulation 3 |
|
PP 7926 |
760 |
740 |
700 |
|
Fiber glass |
- |
- |
- |
|
Flame Retardant PP 210 |
240 |
260 |
300 |
|
Lubricant EBS |
3 |
3 |
3 |
|
Antioxidant 1010 |
2 |
2 |
2 |
|
Antioxidant 168 |
2 |
2 |
2 |
|
Anti-dripping agent PTFE |
0.2 |
0.2 |
0.2 |
|
Silicone oil/Coupling agent NT201 |
2 |
2 |
2 |
Packing:
1. 25 kg net weight woven plastic / polyethylene bags.
2. Default Packing: Neutral Packing: Without our logo; White Packing.
Note:
● If stored too long, or become damp. Dry at 80-110℃ for 2-4 hours, and the products can be used.
● All test results come from the our own experiments, test results would be different when formulation, procedures, equipment or processing temperature is different. Test results are only for your reference, could not be a guarantee.
Product Description
Procedures:
● Machine type: Twin screw extrusion-36
● Main temperature: 160~190 centi degree
● Main engine speed: 240~360 rpm
Test results:
● Formulation 1 can pass UL94 V0(3.2mm);
● Formulation 2 can pass UL94 V0(1.6 mm)
● Formulation 3 can pass UL 94 V0 (0.8mm)
Suggestions and Tips
● Talcum powder, Calcium carbonate and other inorganic fillers will reduce the flame retardant efficiency.
● This flame retardant is specially developed for PP, can also applied in PE and EPDM.
● When in the processing, choose the right screws and processing temperature. (suggested temperature is: 170~190 centi degree)
